PI6CEQ20200LIE

SKU: 35095

Manufacturer: Diodes Incorporated

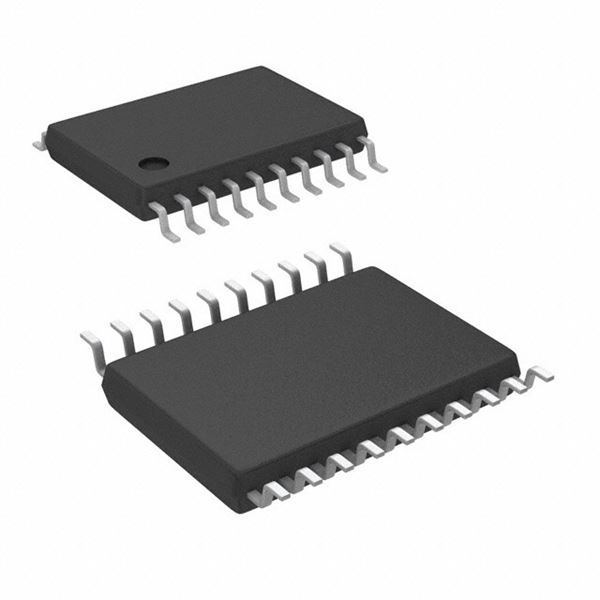

Zero Delay Buffer 2-Out HCSL Differential 20-Pin TSSOP

1540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Clock Driver
Number of Inputs	1
Number of Outputs	2
Number of Banks	1
Programmability	No
Minimum Input Frequency (MHz)	90
Maximum Input Frequency (MHz)	110
Maximum Cycle to Cycle Jitter (ps)	50
Maximum Output Skew (ps)	10
Maximum Fall Time (ns)	0.7
Maximum Rise Time (ns)	0.7
Spread Spectrum	No
Maximum Duty Cycle (%)	53
Input Logic Level	HCSL
Output Logic Level	HCSL
Input Signal Type	Differential
Output Signal Type	Differential
Operating Supply Voltage-Min (V)	3.135
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.465
Maximum Supply Current (mA)	65
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Standard Package Method	SOP
Original Package	TSSOP
Pin Count	20
Terminal Form	Surface Mount
Package Height	1
Package Length	6.5
Package Width	4.4
PCB changed	20
