PI6C557-05QLE

SKU: 37967

Manufacturer: Diodes Incorporated

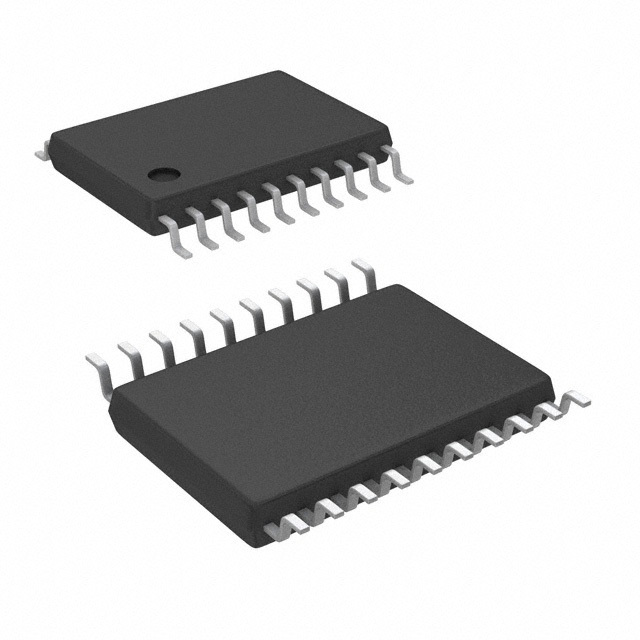

Clock Generator 25MHz-IN 200MHz-OUT Automotive 20-Pin TSSOP

960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Number of Outputs per Chip	4
Clock Input Frequency (MHz)	25(Typ)
Maximum Output Frequency (MHz)	200
Typical Duty Cycle (%)	55(Max)
Input Logic Level	Crystal
Output Logic Level	HCSL
Operating Supply Voltage-Min (V)	3.135
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.465
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Original Package	TSSOP
Pin Count	20
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1
Package Length	6.5
Package Width	4.4
PCB changed	20
