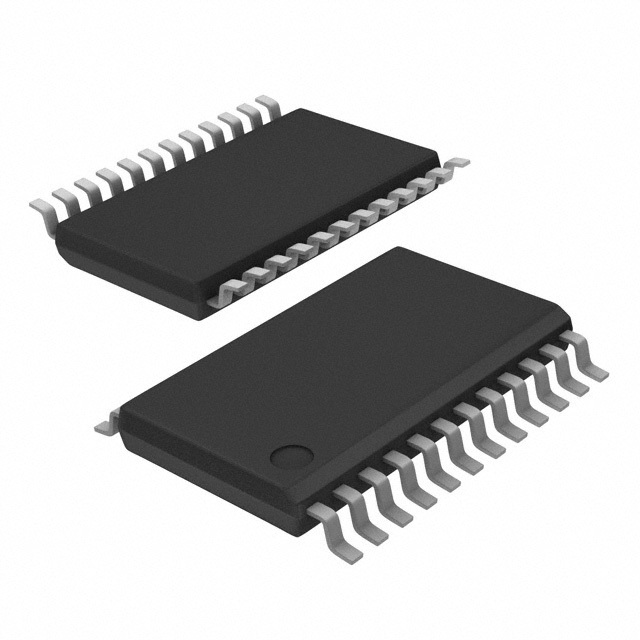

PI6C4911506-06LIE

SKU: 112888

Manufacturer: Diodes Incorporated

Clock Fanout Buffer 6-OUT 3-IN 1:6 24-Pin TSSOP Tube

1170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Fanout Buffer
Number of Outputs per Chip	6
Maximum Input Frequency (MHz)	40
Maximum Propagation Delay Time @ Maximum CL (ns)	1.5(Typ)@2.375V to 3.465V
Absolute Propagation Delay Time (ns)	1.5(Typ)
Maximum Duty Cycle	52%
Input Logic Level	Crystal
Output Logic Level	LVPECL
Operating Supply Voltage-Min (V)	2.375
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.465
Maximum Quiescent Current (mA)	150
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	TSSOP
Pin Count	24
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1
Package Length	7.8
Package Width	4.4
PCB changed	24
