PI6C4911505-04LIEX

SKU: 56546

Manufacturer: Diodes Incorporated

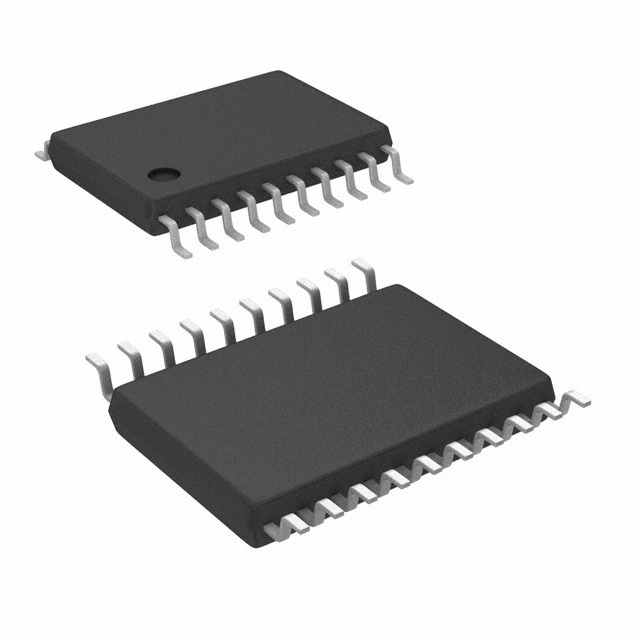

Clock Fanout Buffer 5-OUT 2-IN 1:5 20-Pin TSSOP T/R

1620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Fanout Buffer
Number of Outputs per Chip	5
Maximum Input Frequency (MHz)	1500
Maximum Propagation Delay Time @ Maximum CL (ns)	2.1@2.375V to 3.6V
Absolute Propagation Delay Time (ns)	2.1
Maximum Duty Cycle	52%
Input Logic Level	LVCMOS
Output Logic Level	LVPECL
Operating Supply Voltage-Min (V)	2.375
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Maximum Quiescent Current (mA)	150
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	TSSOP
Pin Count	20
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1
Package Length	6.5
Package Width	4.4
PCB changed	20
