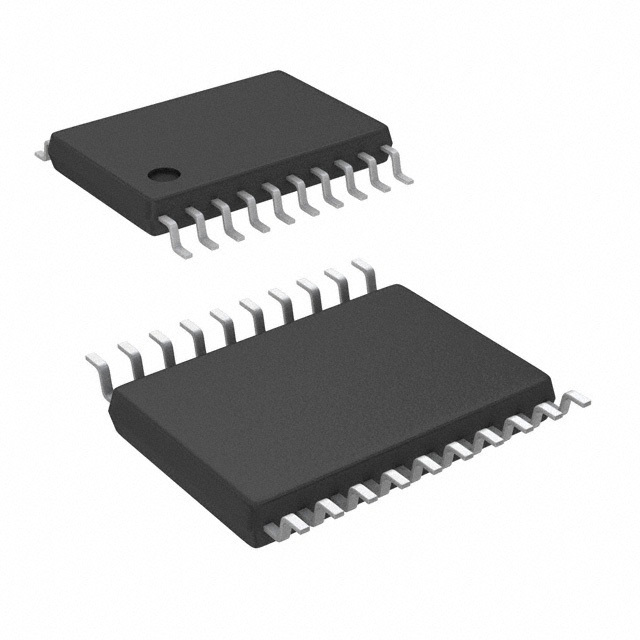

PI6C48535-01LE

SKU: 13884

Manufacturer: Diodes Incorporated

Clock Multiplexer 4-OUT 2-IN 1:4 20-Pin TSSOP Tube

1980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Fanout Buffer
Number of Outputs per Chip	4
Maximum Input Frequency (MHz)	500
Maximum Propagation Delay Time @ Maximum CL (ns)	1.9@3V to 3.6V
Absolute Propagation Delay Time (ns)	1.9
Maximum Duty Cycle	60%
Input Logic Level	LVCMOS
Output Logic Level	LVPECL
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Original Package	TSSOP
Pin Count	20
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20
