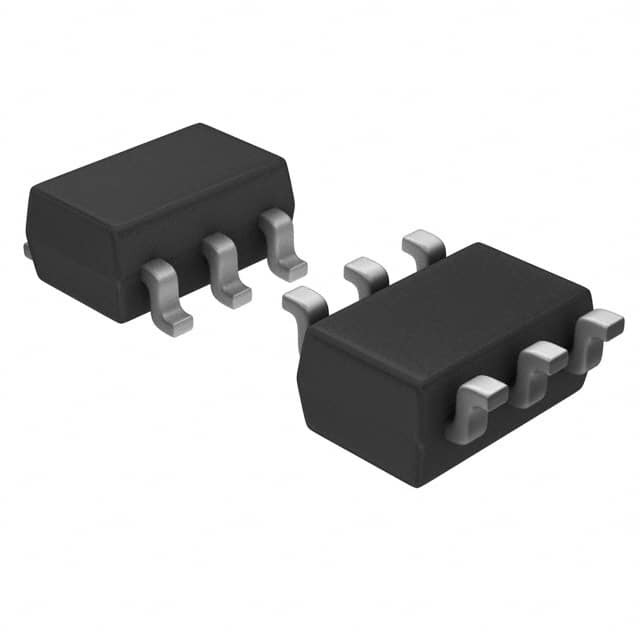

PI5A4157TAEX

SKU: 80286

Manufacturer: Diodes Incorporated

Analog Switch Single SPDT 6-Pin SOT-23 T/R

2680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Single SPDT
Switch Architecture	SPDT
Number of Channels per Chip	1
Number of Inputs per Chip	1
Number of Outputs per Chip	2
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	25@3.6V@-40C to 85C
Maximum Turn-Off Time (ns)	35@3.6V@-40C to 85C
Maximum Frequency (25°C) @ Vcc (MHz)	150(Typ)@5.5V@-40C to 85C
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	1.65
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum High Level Output Current (mA)	128
Maximum On Resistance (Ohm)	2.6@1.65V
Maximum On Resistance Range (Ohm)	1 to 5
Power Supply Type	Single
Maximum Power Dissipation (mW)	250
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended Industrial
Original Package	SOT-23
Pin Count	6
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.3(Max)
Package Length	3.05(Max)
Package Width	1.75(Max)
