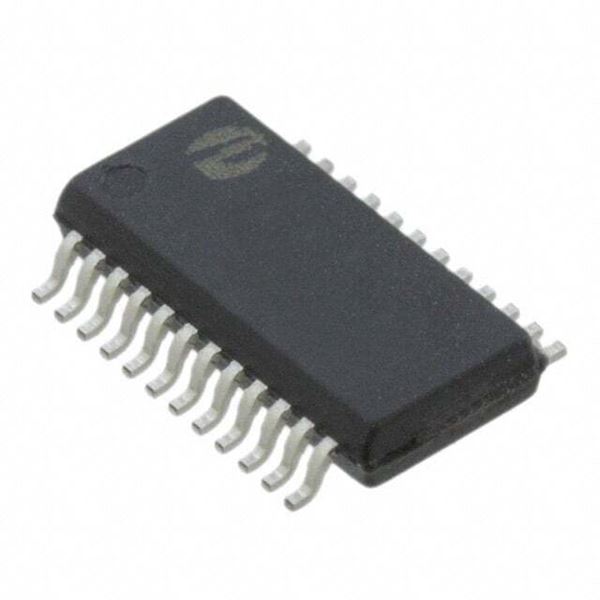

PI3V512QEX

SKU: 42224

Manufacturer: Diodes Incorporated

Analog Multiplexer Quint 2:1 24-Pin QSOP T/R

14700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	5
Number of Inputs per Chip	10
Number of Outputs per Chip	5
Chip Enable Signals	Yes
Maximum Propagation Delay Bus to Bus (ns)	0.25(Typ)
Maximum Turn-On Time (ns)	15
Maximum Turn-Off Time (ns)	9
Maximum Frequency (25°C) @ Vcc (MHz)	600(Typ)@3.3V@-40C to 85C
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Maximum High Level Output Current (mA)	120
Maximum On Resistance (Ohm)	8@3.3V
Maximum On Resistance Range (Ohm)	5 to 10
Power Supply Type	Single
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QSOP
Pin Count	24
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.24(Min)
Package Length	8.66
Package Width	3.91
PCB changed	24
