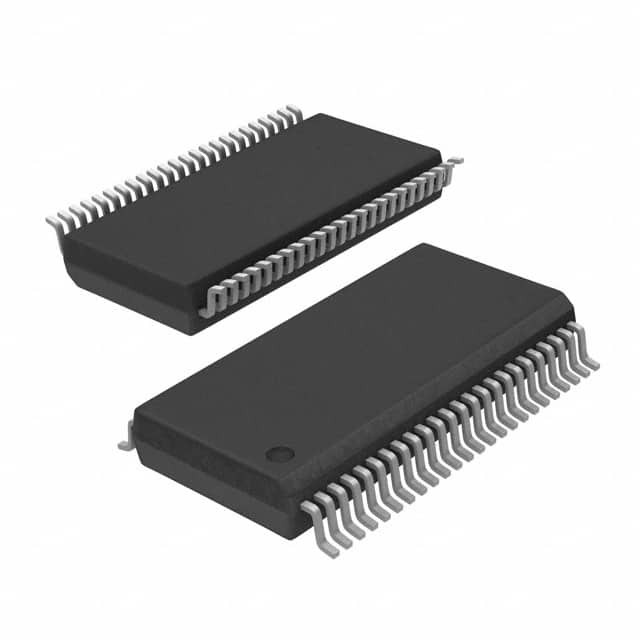

PI3L301DAEX

SKU: 35084

Manufacturer: Diodes Incorporated

Analog Multiplexer Single 16:8 48-Pin TSSOP T/R

25230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	1
Number of Inputs per Chip	16
Number of Outputs per Chip	8
Chip Enable Signals	Yes
Maximum Propagation Delay Bus to Bus (ns)	0.25(Typ)@3.3V
Maximum Turn-On Time (ns)	15@3.3V@-40C to 85C
Maximum Turn-Off Time (ns)	9@3.3V@-40C to 85C
Maximum Frequency (25°C) @ Vcc (MHz)	350(Typ)@3.3V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Maximum High Level Output Current (mA)	120
Maximum On Resistance (Ohm)	8@3.3V
Maximum On Resistance Range (Ohm)	5 to 10
Power Supply Type	Single
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	TSSOP
Pin Count	48
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1
Package Length	12.5
Package Width	6.1
PCB changed	48
