PI3HDX1204B1ZHE

SKU: 63502

Manufacturer: Diodes Incorporated

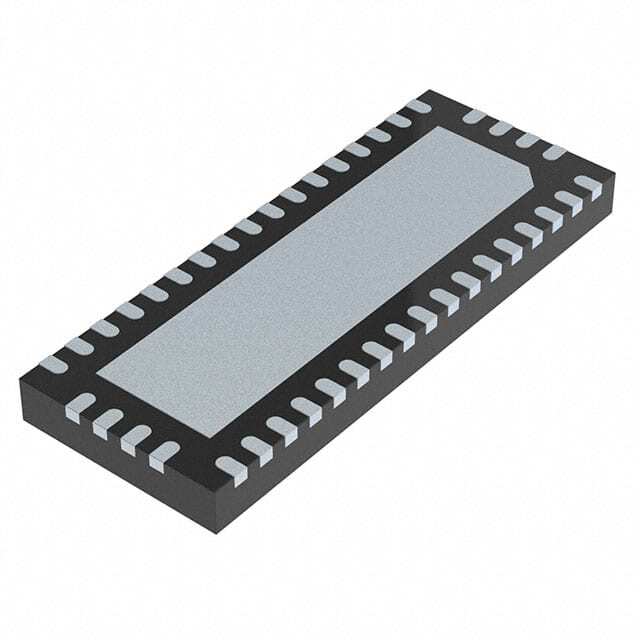

Level Shifter/Driver 42-Pin TQFN EP

3370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Logic Function	Level Shifter/Driver
Maximum Propagation Delay Time @ Maximum CL (ns)	0.065(Typ)@3.3V
Absolute Propagation Delay Time (ns)	0.065(Typ)
Maximum Low Level Output Current (mA)	0.2
Maximum High Level Output Current (mA)	-0.2
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Quiescent Current (mA)	4.2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Original Package	TQFN EP
Pin Count	42
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.73
Package Length	9
Package Width	3.5
PCB changed	42
