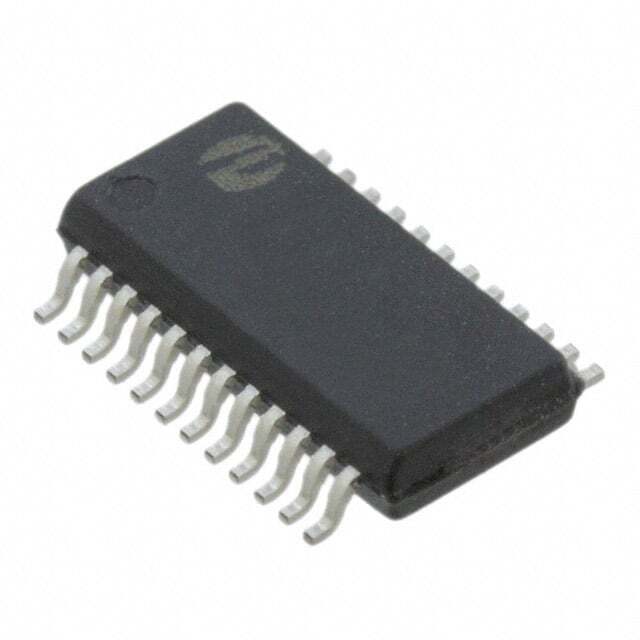

PI3CH1012QE

SKU: 20915

Manufacturer: Diodes Incorporated

Bus Switch 1-Element 10-IN 24-Pin QSOP

1890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Function	Bus Switch
Number of Elements per pcs	1
Number of Inputs per Chip	10
Number of Outputs per Chip	10
Absolute Propagation Delay Time (ns)	15
Maximum Propagation Delay Time @ Maximum CL (ns)	0.3@3.3V
Maximum On Resistance (Ohm)	8
Maximum High Level Output Current (mA)	-120
Maximum Low Level Output Current (mA)	120
Operating Supply Voltage-Min (V)	1.62
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	3.63
Maximum Quiescent Current (uA)	800
Propagation Delay Test Condition (pF)	10
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Original Package	QSOP
Pin Count	24
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.65(Max)
Package Length	8.66
Package Width	3.91
