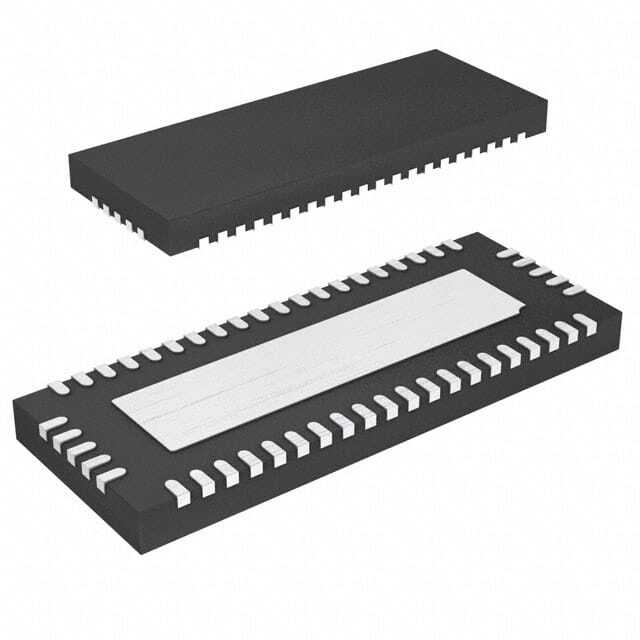

PI2DDR3212ZLE

SKU: 70518

Manufacturer: Diodes Incorporated

Analog Switch/Analog Multiplexer Fourteen 2:1 52-Pin TQFN EP

1720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Switch
Switch Architecture	SPST
Number of Channels per Chip	14
Number of Inputs per Chip	28
Number of Outputs per Chip	14
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Data Rate (Mbps)	4266
Maximum Propagation Delay Bus to Bus (ns)	0.06(Typ)
Maximum Frequency (25°C) @ Vcc (MHz)	3300(Typ)
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	1.28
Typical Single Supply Voltage (V)	1.8
Maximum Single Supply Voltage (V)	2
Typical Supply Current (mA)	0.22@1.8V
Maximum Supply Current (mA)	0.35@1.8V
Maximum On Resistance (Ohm)	8(Typ)
Maximum On Resistance Range (Ohm)	5 to 10
Power Supply Type	Single
Operating Temperature-Min	-10
Operating Temperature-Max	85
Original Package	TQFN EP
Pin Count	52
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.73
Package Length	9
Package Width	3.5
PCB changed	52
