PDS5100Q-13D

SKU: 115680

Manufacturer: Diodes Incorporated

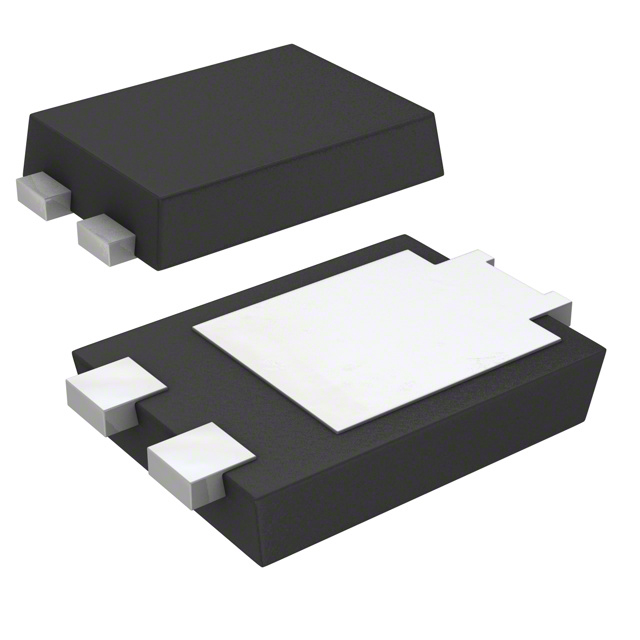

Rectifier Diode Schottky 100V 5A Automotive 3-Pin(3+Tab) PowerDI 5 T/R

3350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Yes
Type	Schottky Diode
Maximum DC Reverse Voltage (V)	100
Configuration	Single Dual Anode
Peak Reverse Repetitive Voltage (V)	100
Maximum Continuous Forward Current (A)	5
Peak Non-Repetitive Surge Current (A)	120
Peak Forward Voltage (V)	0.89@10A
Peak Reverse Current (uA)	200
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerDI 5
Pin Count	3
Terminal Form	Surface Mount
Package Height	1.1(Max)
Package Length	3.97
Package Width	5.37
PCB changed	3
