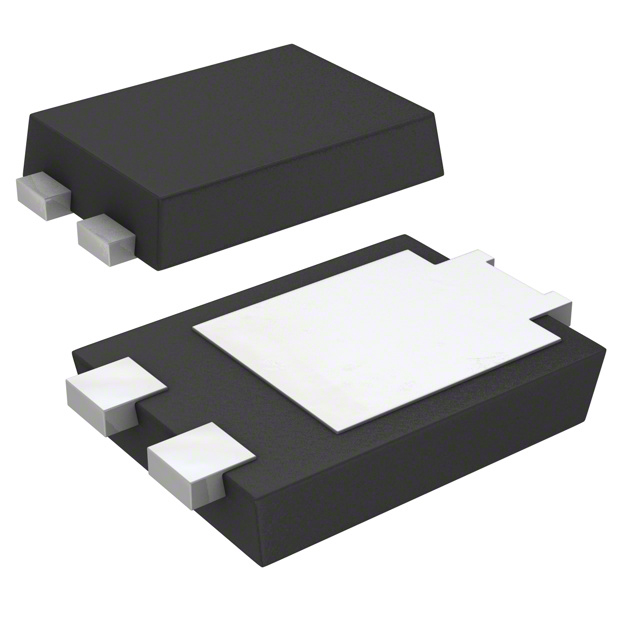

PDS4200HQ-13

SKU: 28048

Manufacturer: Diodes Incorporated

Rectifier Diode Schottky 200V 4A 25ns Automotive 3-Pin(3+Tab) PowerDI 5 T/R

3710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Yes
Type	Schottky Diode
Maximum DC Reverse Voltage (V)	200
Configuration	Single Dual Anode
Peak Reverse Repetitive Voltage (V)	200
Maximum Continuous Forward Current (A)	4
Peak Non-Repetitive Surge Current (A)	100
Peak Forward Voltage (V)	0.89@8A
Peak Reverse Current (uA)	1
Peak Reverse Recovery Time (ns)	25
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Original Package	PowerDI 5
Pin Count	3
Terminal Form	Surface Mount
Package Height	1.1(Max)
Package Length	3.97
Package Width	5.37
PCB changed	3
