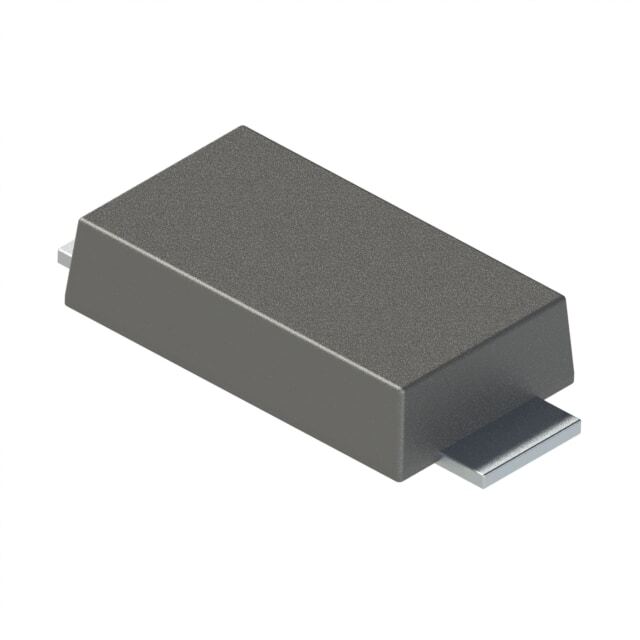

P6SMAJ20ADF-13

SKU: 141237

Manufacturer: Diodes Incorporated

TVS Diode Single Uni-Dir 20V 600W 2-Pin D-FLAT T/R

1650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	22.2
Maximum Clamping Voltage (V)	32.4
Maximum Reverse Stand-Off Voltage (V)	20
Maximum Forward Voltage (V)	3.5
Peak Forward Surge Current (A)	60
Maximum Peak Pulse Current (A)	18.5
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	600
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Original Package	D-FLAT
Pin Count	2
Terminal Form	Surface Mount
Package Height	1.1(Max)
Package Length	4.6(Max)
Package Width	2.95(Max)
PCB changed	2
