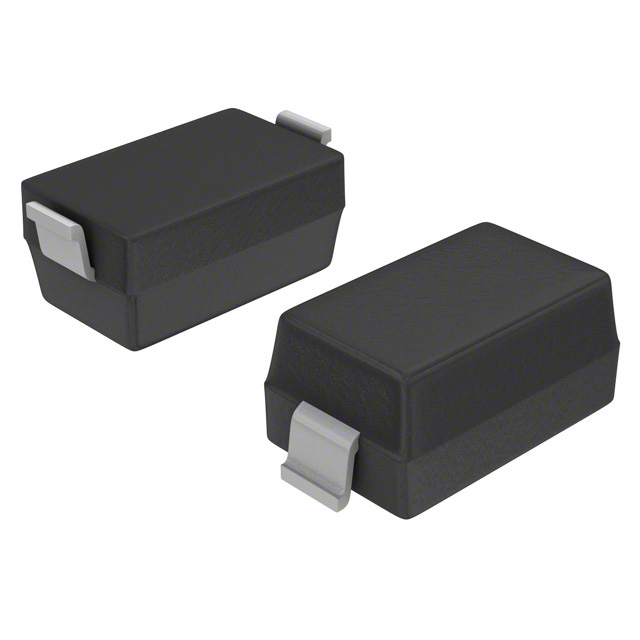

MMSZ5228B-7

SKU: 98414

Manufacturer: Diodes Incorporated

Zener Diode Single 3.9V 5% 23Ohm 500mW 2-Pin SOD-123 T/R

2220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	3.9
Zener Voltage Tolerance	5%
Maximum Forward Voltage (V)	0.9
Maximum Power Dissipation (mW)	500
Test Current (mA)	20
Maximum Reverse Leakage Current (uA)	10
Maximum Zener Impedance (Ohm)	23
Maximum Power Dissipation @ 25C (mW)	370
Operating Temperature-Min	-65
Operating Temperature-Max	150
Supplier Temperature Grade	Commercial
Maximum Zener Voltage (V)	4.1
Minimum Zener Voltage (V)	3.71
Packing Method	Tape and Reel
Product Weight (g)	0.01
Original Package	SOD-123
Pin Count	2
Standard Package Method	SOD
Terminal Form	Surface Mount
Package Height	1.05
Package Length	2.65
Package Width	1.55
PCB changed	2
