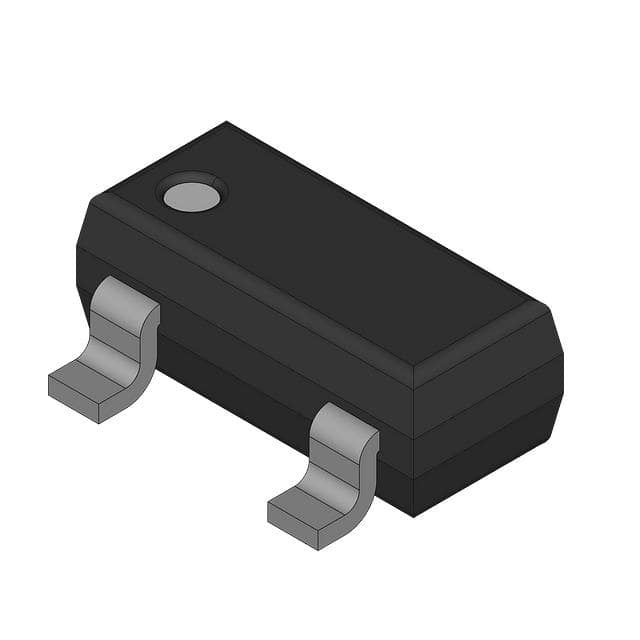

MMBTA42

SKU: 27753

Manufacturer: Diodes Incorporated

Trans GP BJT NPN 300V 0.5A 300mW 3-Pin SOT-23

38520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Small Signal
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	300
Collector-Emitter Voltage-Max (V)	300
Maximum Emitter Base Voltage (V)	6
Maximum Base Emitter Saturation Voltage (V)	0.9@2mA@20mA
Maximum Collector-Emitter Saturation Voltage (V)	0.5@2mA@20mA
Maximum DC Collector Current (A)	0.5
Minimum DC Current Gain	40@10mA@10V
Maximum Power Dissipation (mW)	300
Maximum Transition Frequency (MHz)	50(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Original Package	SOT-23
Pin Count	3
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	0.98
Package Length	2.9
Package Width	1.3
PCB changed	3
