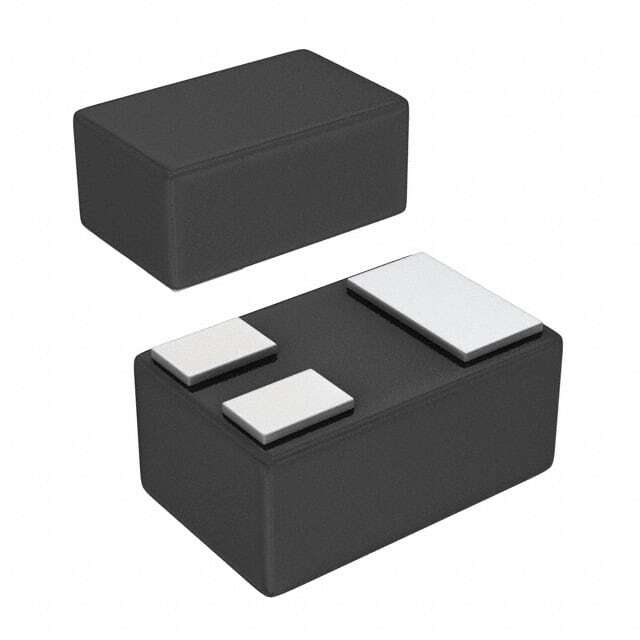

MMBT3906LP-7B

SKU: 23672

Manufacturer: Diodes Incorporated

Trans GP BJT PNP 40V 0.2A 1000mW 3-Pin X1-DFN T/R

1700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Small Signal
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	40
Collector-Emitter Voltage-Max (V)	40
Maximum Emitter Base Voltage (V)	6
Maximum Base Emitter Saturation Voltage (V)	0.85@1mA@10mA
Maximum Collector-Emitter Saturation Voltage (V)	0.25@1mA@10mA
Maximum DC Collector Current (A)	0.2
Maximum Collector Cut-Off Current (nA)	50
Minimum DC Current Gain	60@100uA@1V
Maximum Power Dissipation (mW)	1000
Maximum Transition Frequency (MHz)	300(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	X1-DFN
Pin Count	3
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.47
Package Length	0.6
Package Width	1
PCB changed	3
