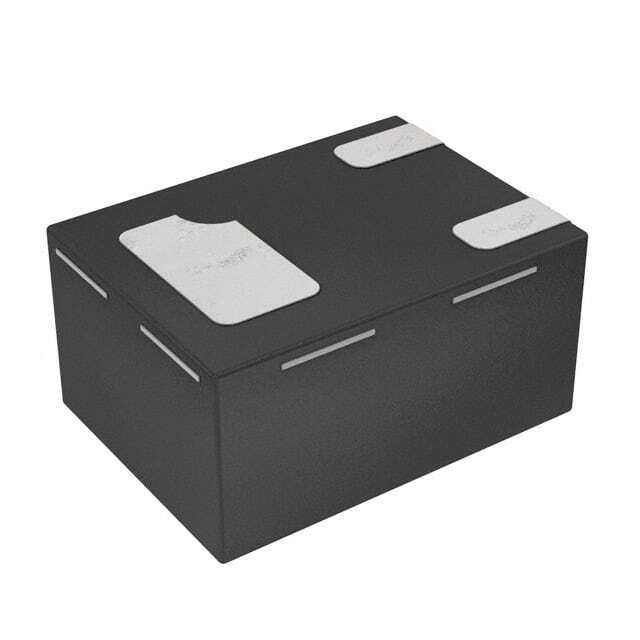

MMBT3904FA-7B

SKU: 148063

Manufacturer: Diodes Incorporated

Trans GP BJT NPN 40V 0.2A 435mW 3-Pin X2-DFN T/R

1600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Small Signal
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	60
Collector-Emitter Voltage-Max (V)	40
Maximum Emitter Base Voltage (V)	6
Maximum Base Emitter Saturation Voltage (V)	0.85@1mA@10mA
Maximum Collector-Emitter Saturation Voltage (V)	0.2@1mA@10mA
Maximum DC Collector Current (A)	0.2
Minimum DC Current Gain	40@100uA@1V
Maximum Power Dissipation (mW)	435
Maximum Transition Frequency (MHz)	300(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Original Package	X2-DFN
Pin Count	3
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.37
Package Length	0.6
Package Width	0.8
PCB changed	3
