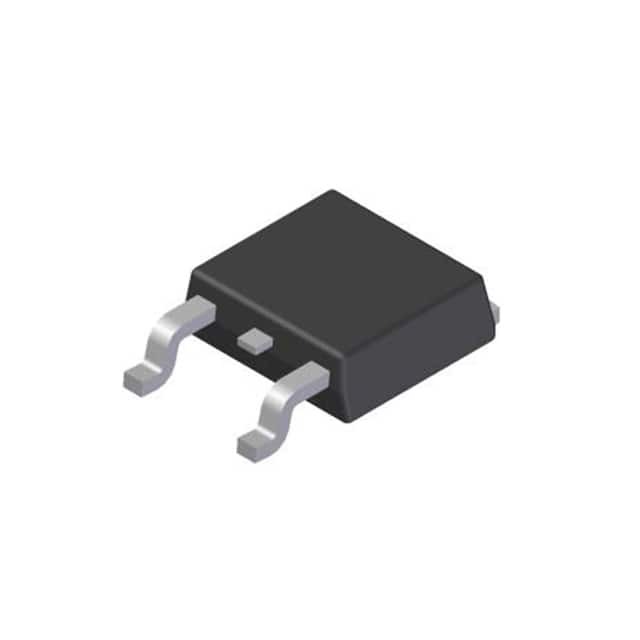

MJD31CQ-13

SKU: 27712

Manufacturer: Diodes Incorporated

Trans GP BJT NPN 100V 3A 1500mW Automotive 3-Pin(2+Tab) TO-252 T/R

2600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.29.00.95
Automotive	Yes
PPAP	Yes
Type	NPN
Product Category	Bipolar Power
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	100
Collector-Emitter Voltage-Max (V)	100
Maximum Emitter Base Voltage (V)	6
Maximum Collector-Emitter Saturation Voltage (V)	1.2@375mA@3A
Maximum DC Collector Current (A)	3
Minimum DC Current Gain	10@3A@4V
Maximum Power Dissipation (mW)	3900
Maximum Transition Frequency (MHz)	3(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Original Package	TO-252
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.29
Package Length	6.58
Package Width	6.1
PCB changed	2
Tab	Tab
