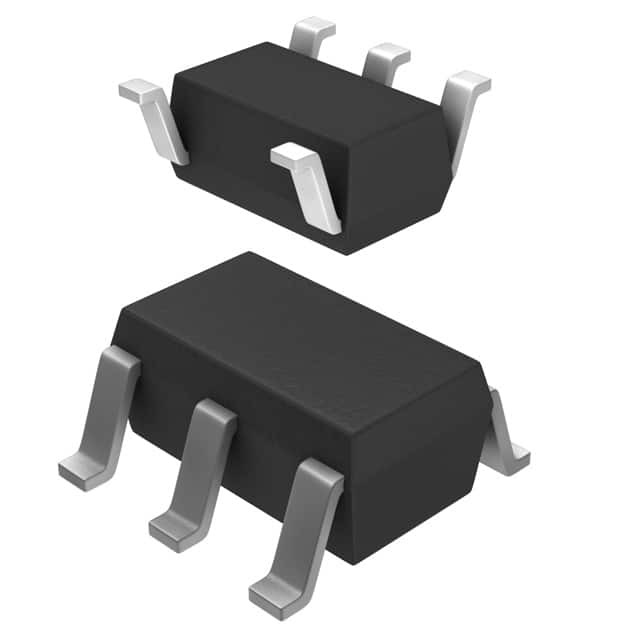

LMV331W5-7

SKU: 33672

Manufacturer: Diodes Incorporated

Comparator Single 5.5V 5-Pin SOT-25 T/R

1370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Manufacturer Type	Low Voltage Comparator
Number of Channels per Chip	1
Rail to Rail	No
Process Technology	Bipolar
Maximum Propagation Delay Time (ns)	600(Typ)
Output Type	Open Collector
Operating Supply Voltage-Max (V)	5.5
Maximum Input Offset Voltage (mV)	7@5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Typical Voltage Gain (dB)	93.98
Typical Voltage Gain Range (dB)	90 to 110
Maximum Input Bias Current (uA)	0.25@5V
Maximum Supply Current (mA)	0.12@5V
Typical Output Current (mA)	84@5V
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Standard Package Method	SOT-23
Original Package	SOT-25
Pin Count	5
Terminal Form	Surface Mount
Package Height	1.1
Package Length	3
Package Width	1.6
PCB changed	5
