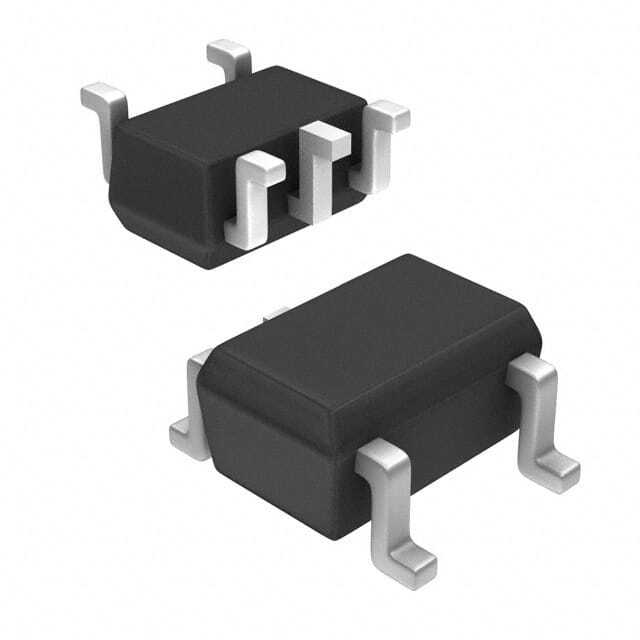

LMV321SEG-7

SKU: 111472

Manufacturer: Diodes Incorporated

Op Amp Single Low Voltage Amplifier R-R O/P 5.5V 5-Pin SOT-353 T/R

5400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Low Voltage Amplifier
Manufacturer Type	Low Voltage Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	9@5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Input Offset Current (uA)	0.15@5V
Maximum Input Bias Current (uA)	0.5@5V
Maximum Supply Current (mA)	0.14@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	1@5V
Typical Input Noise Voltage Density (nV/rtHz)	23@5V
Typical Voltage Gain (dB)	100
Minimum PSRR (dB)	50
Minimum CMRR (dB)	50
Minimum CMRR Range (dB)	50 to 60
Typical Gain Bandwidth Product (MHz)	1
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SOT-353
Pin Count	5
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.95
Package Length	2.15
Package Width	1.3
PCB changed	5
