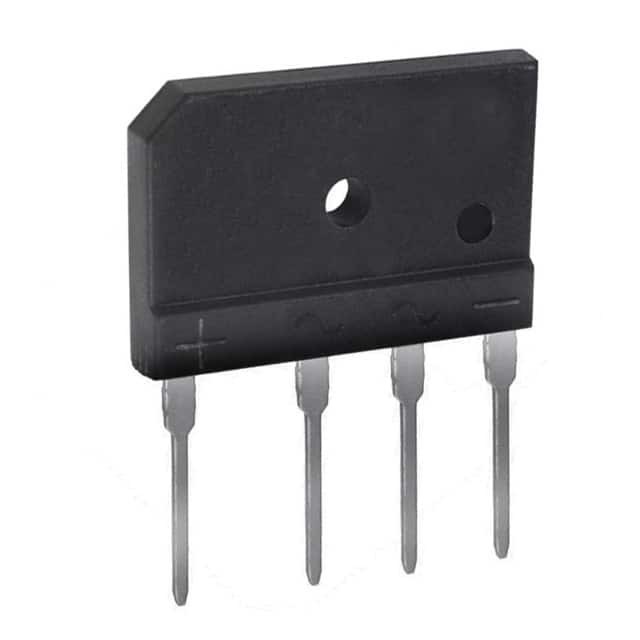

GBJ1501-F

SKU: 132155

Manufacturer: Diodes Incorporated

Rectifier Bridge Diode Single 100V 15A 4-Pin(4+Tab) Case GBJ

3370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Bridge Type	Single Phase
Configuration	Single
Peak Reverse Repetitive Voltage (V)	100
Peak Average Forward Current (A)	15
Peak RMS Reverse Voltage (V)	70
Peak Non-Repetitive Forward Surge Current (A)	240
Peak Forward Voltage (V)	1.05@7.5A
Peak Reverse Current (uA)	10
Operating Temperature-Min	-65
Operating Temperature-Max	150
Original Package	Case GBJ
Pin Count	4
Standard Package Method	Case GBJ
Terminal Form	Through Hole
Package Height	20.3(Max)
Package Length	30.3(Max)
Package Width	4.8(Max)
PCB changed	4
