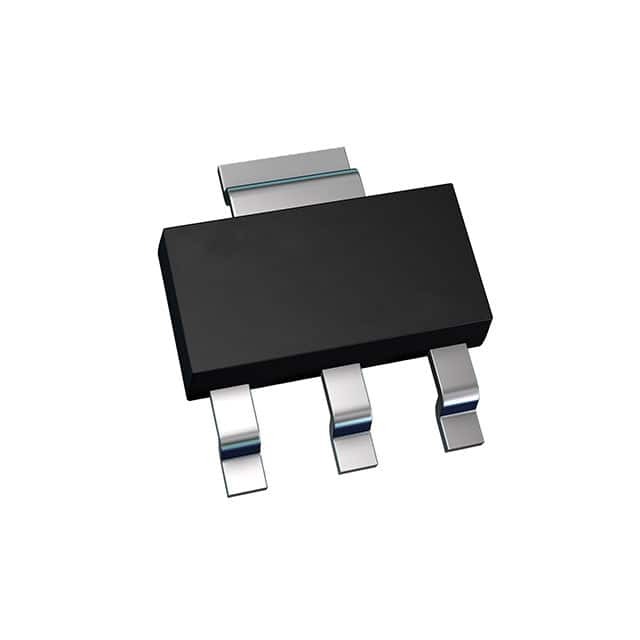

DZTA42Q-13

SKU: 117696

Manufacturer: Diodes Incorporated

Trans GP BJT NPN 300V 0.5A 2000mW Automotive 4-Pin(3+Tab) SOT-223 T/R

1350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.75
Automotive	Yes
PPAP	Yes
Type	NPN
Product Category	Bipolar Power
Configuration	Single Dual Collector
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	300
Collector-Emitter Voltage-Max (V)	300
Maximum Emitter Base Voltage (V)	6
Maximum Base Emitter Saturation Voltage (V)	0.9@2mA@20mA
Maximum Collector-Emitter Saturation Voltage (V)	0.5@2mA@20mA
Maximum DC Collector Current (A)	0.5
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	25@1mA@10V
Maximum Power Dissipation (mW)	2000
Maximum Transition Frequency (MHz)	50(Min)
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Original Package	SOT-223
Pin Count	4
Terminal Form	Surface Mount
Package Height	1.6
Package Length	6.5
Package Width	3.5
PCB changed	3
