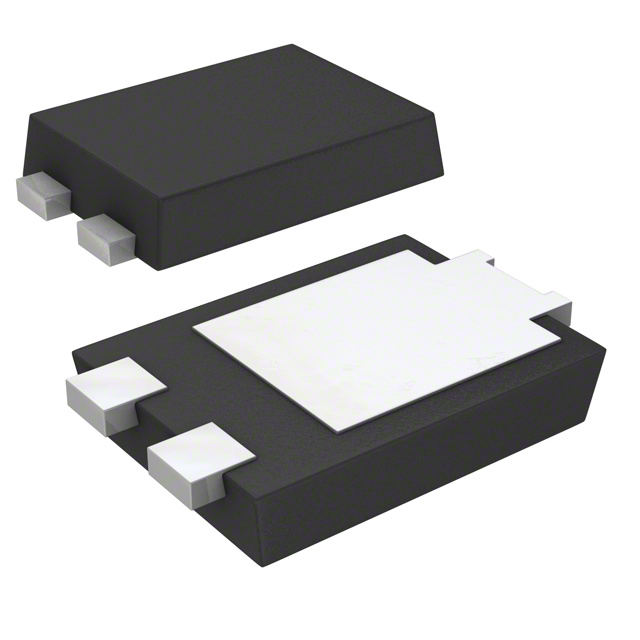

DXT2010P5-13

SKU: 30316

Manufacturer: Diodes Incorporated

Trans GP BJT NPN 60V 6A 3200mW 3-Pin(3+Tab) PowerDI 5 T/R

4760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.75
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	150
Collector-Emitter Voltage-Max (V)	60
Maximum Emitter Base Voltage (V)	7
Maximum Base Emitter Saturation Voltage (V)	1.1@300mA@6A
Maximum Collector-Emitter Saturation Voltage (V)	0.03@5mA@100mA
Maximum DC Collector Current (A)	6
Maximum Collector Cut-Off Current (nA)	20
Minimum DC Current Gain	100@10mA@1V
Maximum Power Dissipation (mW)	3200
Maximum Transition Frequency (MHz)	130(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerDI 5
Pin Count	3
Terminal Form	Surface Mount
Package Height	1.1(Max)
Package Length	3.97
Package Width	5.37
PCB changed	3
