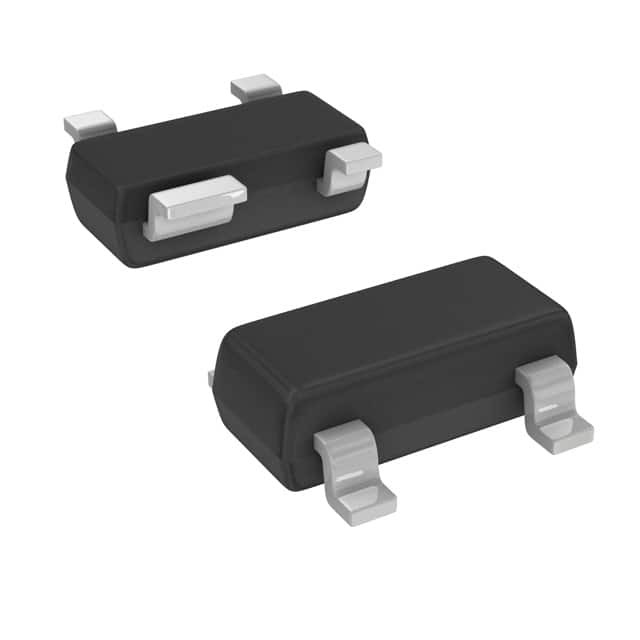

DT1042-02SR-7

SKU: 139042

Manufacturer: Diodes Incorporated

ESD Suppressor Diode TVS Uni-Dir 5V 4-Pin SOT-143 T/R

2150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	No
PPAP	No
Type	TVS
Configuration	Dual
Direction Type	Uni-Directional
Number of Elements per pcs	2
Maximum Working Voltage (V)	5
Minimum Breakdown Voltage (V)	6.2
Maximum Clamping Voltage (V)	9
Maximum Peak Pulse Current (A)	6
Maximum Leakage Current (uA)	1
Test Current (mA)	1
Maximum Power Dissipation (mW)	350(Typ)
Peak Pulse Power Dissipation (W)	55
Capacitance Value (pF)	0.8
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-143
Pin Count	4
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.9
Package Width	1.3
