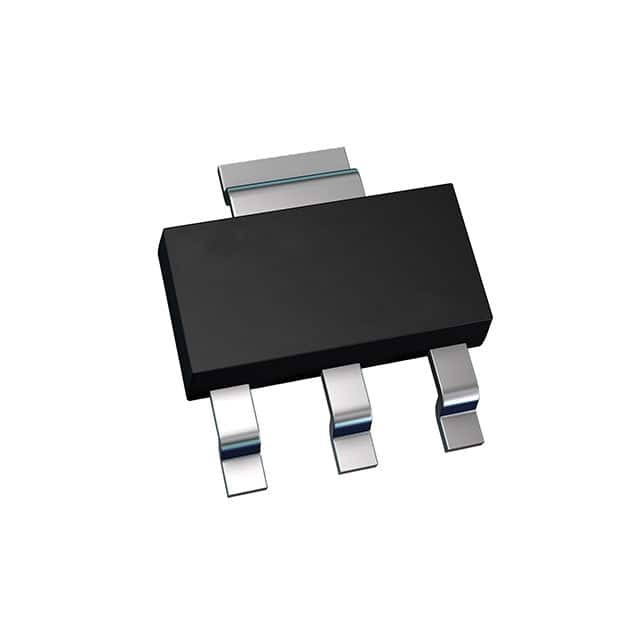

DSS60601MZ4-13

SKU: 131925

Manufacturer: Diodes Incorporated

Trans GP BJT NPN 60V 6A 1200mW 4-Pin(3+Tab) SOT-223 T/R

3380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Small Signal
Configuration	Single Dual Collector
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	100
Collector-Emitter Voltage-Max (V)	60
Maximum Emitter Base Voltage (V)	6
Maximum Base Emitter Saturation Voltage (V)	0.9@100mA@1A
Maximum Collector-Emitter Saturation Voltage (V)	0.04@2mA@0.1A
Maximum DC Collector Current (A)	6
Minimum DC Current Gain	150@0.5A@2V
Maximum Power Dissipation (mW)	3000
Maximum Transition Frequency (MHz)	100(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-223
Pin Count	4
Standard Package Method	SOT-223
Terminal Form	Surface Mount
Package Height	1.6
Package Length	6.5
Package Width	3.5
PCB changed	3
Tab	Tab
