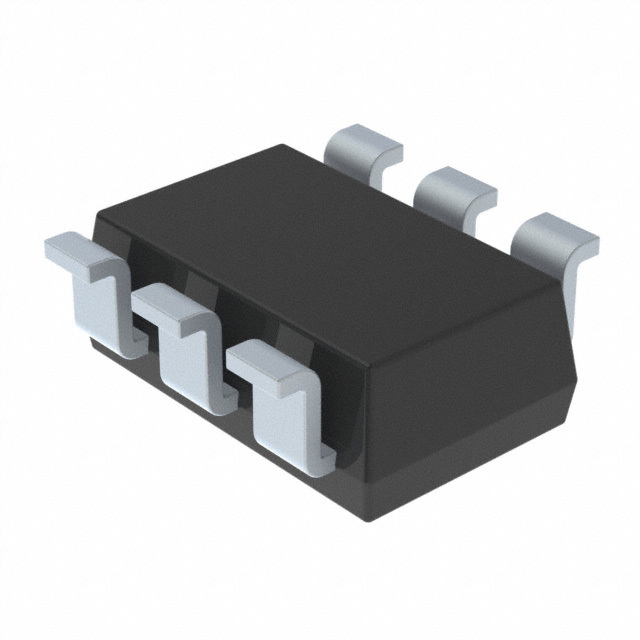

DSM80100M-7

SKU: 96391

Manufacturer: Diodes Incorporated

Trans GP BJT PNP 80V 0.5A 600mW 6-Pin SOT-26 T/R

1070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Small Signal
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	80
Collector-Emitter Voltage-Max (V)	80
Maximum Emitter Base Voltage (V)	4
Maximum Collector-Emitter Saturation Voltage (V)	0.25@10mA@100mA
Maximum DC Collector Current (A)	0.5
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	120@10mA@1V
Maximum Power Dissipation (mW)	600
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-26
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.1
Package Length	3
Package Width	1.6
PCB changed	6
