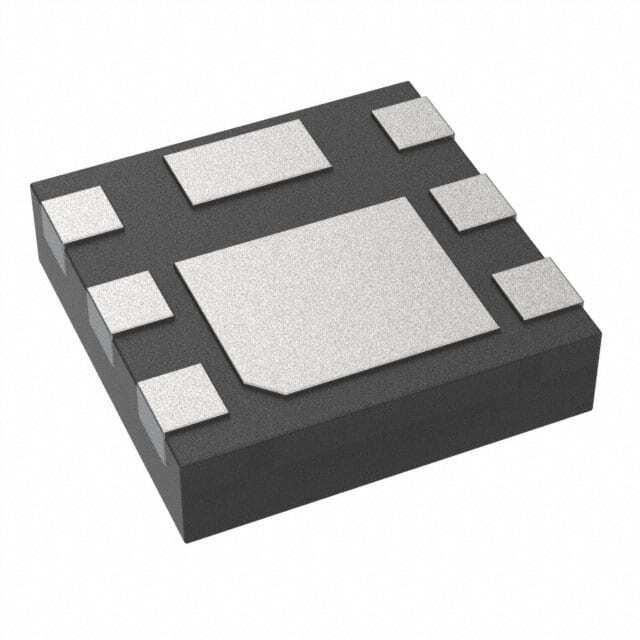

DMTH6016LFDFW-13

SKU: 96320

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 60V 9.4A 6-Pin UDFN EP T/R

2710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Product Category	Power MOSFET
Configuration	Dual Quad Drain
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	3
Maximum Continuous Drain Current (A)	9.4
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	18@10V
Typical Gate Charge @ Vgs (nC)	15.3@10V
Typical Gate Charge @ 10V (nC)	15.3
Typical Input Capacitance @ Vds (pF)	925@30V
Maximum Power Dissipation (mW)	1060
Typical Fall Time (ns)	7.2
Typical Rise Time (ns)	4.2
Typical Turn-Off Delay Time (ns)	14.5
Typical Turn-On Delay Time (ns)	3.2
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	UDFN EP
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.59
Package Length	2
Package Width	2
