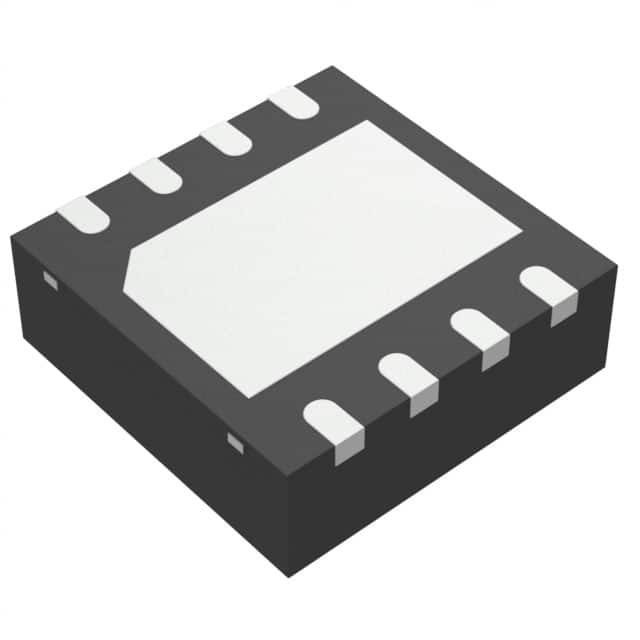

DMS2120LFWB-7

SKU: 89228

Manufacturer: Diodes Incorporated

Trans MOSFET P-CH 20V 2.9A 8-Pin DFN T/R

165220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Dual Drain
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±12
Maximum Continuous Drain Current (A)	2.9
Maximum Drain Source Resistance (mOhm)	95@4.5V
Typical Input Capacitance @ Vds (pF)	632@10V
Maximum Power Dissipation (mW)	1500
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	DFN
Pin Count	8
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.78
Package Length	3
Package Width	2
