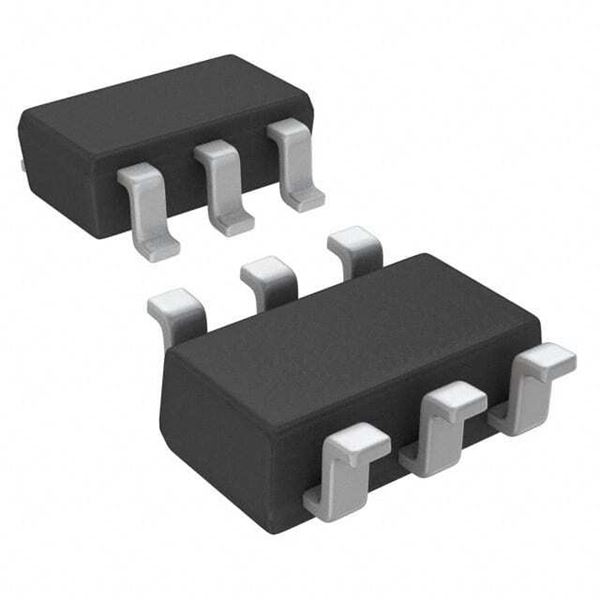

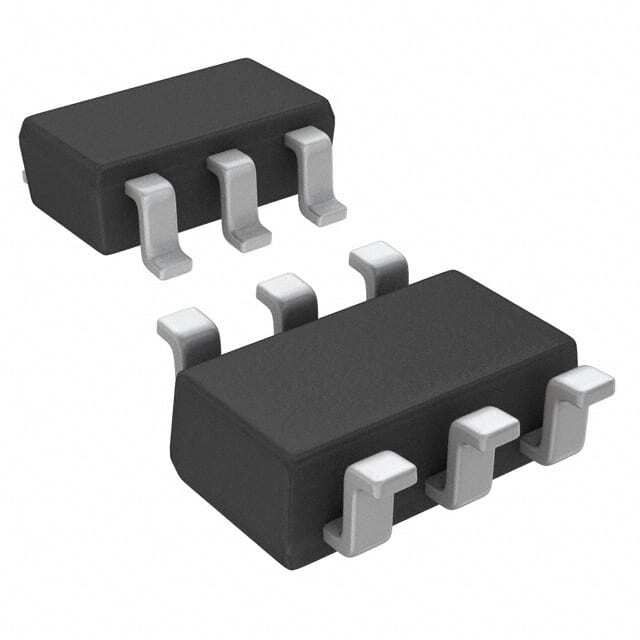

DMP6110SVT-7

SKU: 39871

Manufacturer: Diodes Incorporated

Trans MOSFET P-CH 60V 7.3A 6-Pin TSOT-26 T/R

12750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Configuration	Single Quad Drain
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	3
Maximum Continuous Drain Current (A)	7.3
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	105@10V
Typical Gate Charge @ Vgs (nC)	17.2@10V
Typical Gate Charge @ 10V (nC)	17.2
Typical Input Capacitance @ Vds (pF)	969@30V
Maximum Power Dissipation (mW)	1800
Typical Fall Time (ns)	42
Typical Rise Time (ns)	23
Typical Turn-Off Delay Time (ns)	34
Typical Turn-On Delay Time (ns)	4.4
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	TSOT-26
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.6
PCB changed	6
