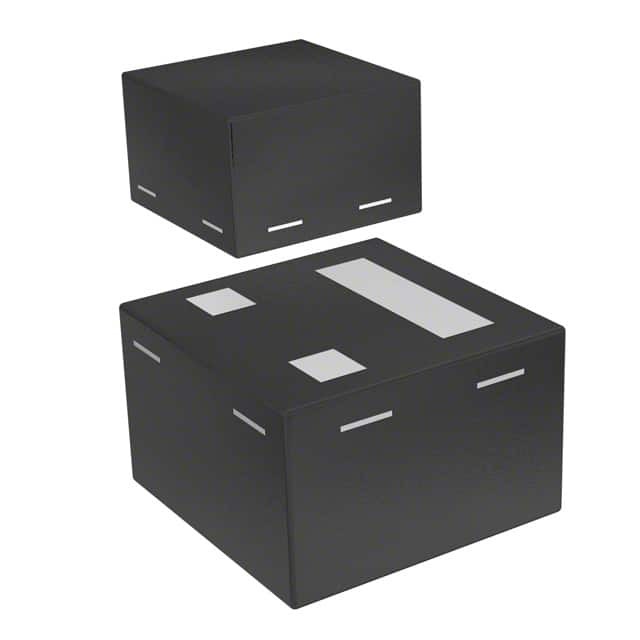

DMP32D9UFZ-7B

SKU: 117600

Manufacturer: Diodes Incorporated

Trans MOSFET P-CH 30V 0.2A 3-Pin X2-DFN T/R

2140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±10
Maximum Gate Threshold Voltage (V)	1
Maximum Continuous Drain Current (A)	0.2
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	0.1
Maximum Drain Source Resistance (mOhm)	5000@4.5V
Typical Gate Charge @ Vgs (nC)	0.35@4.5V
Typical Input Capacitance @ Vds (pF)	22.5@15V
Maximum Power Dissipation (mW)	390
Typical Fall Time (ns)	10.5
Typical Rise Time (ns)	2.3
Typical Turn-Off Delay Time (ns)	19.9
Typical Turn-On Delay Time (ns)	3.1
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	X2-DFN
Pin Count	3
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.37
Package Length	0.62
Package Width	0.62
PCB changed	3
