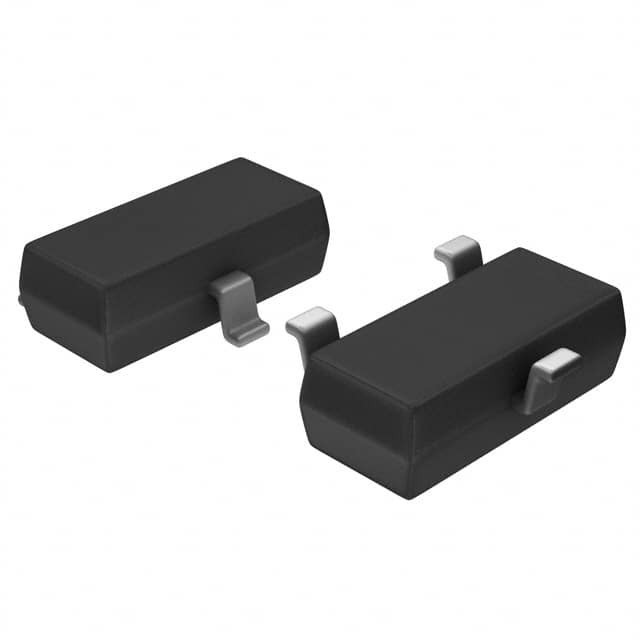

DMP3056L-7

SKU: 153099

Manufacturer: Diodes Incorporated

Trans MOSFET P-CH 30V 4.3A 3-Pin SOT-23 T/R

Download sample

Request Free Samples

4680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±25
Maximum Gate Threshold Voltage (V)	2.1
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	4.3
Maximum Gate Source Leakage Current (nA)	800
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	50@10V
Typical Gate Charge @ Vgs (nC)	11.8@10V
Typical Gate Charge @ 10V (nC)	11.8
Typical Gate to Drain Charge (nC)	2.4@15V
Typical Gate to Source Charge (nC)	2
Typical Input Capacitance @ Vds (pF)	642@25V
Typical Reverse Transfer Capacitance @ Vds (pF)	48@25V
Minimum Gate Threshold Voltage (V)	1
Typical Output Capacitance (pF)	65
Maximum Power Dissipation (mW)	1380
Typical Fall Time (ns)	18.2
Typical Rise Time (ns)	4.7
Typical Turn-Off Delay Time (ns)	35.2
Typical Turn-On Delay Time (ns)	4.9
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum Positive Gate Source Voltage (V)	25
Maximum Continuous Drain Current on PCB @ TC=25°C (A)	4.3
Maximum Power Dissipation on PCB @ TC=25°C (W)	1.38
Maximum Pulsed Drain Current @ TC=25°C (A)	20
Maximum Junction Ambient Thermal Resistance on PCB (°C/W)	91
Typical Gate Plateau Voltage (V)	3.5
Maximum Diode Forward Voltage (V)	1.2
Original Package	SOT-23
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.98
Package Length	2.9
Package Width	1.3
PCB changed	3
