    DMP3025LK3-13-01

    SKU: 75127
    Manufacturer: Diodes Incorporated

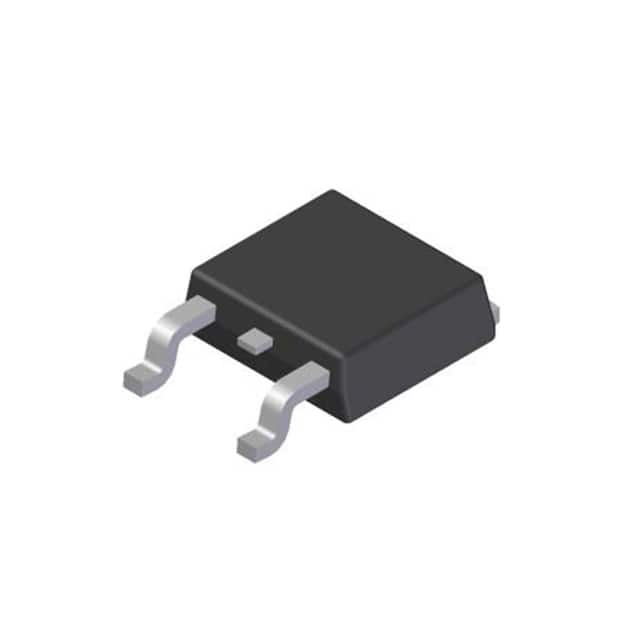

    Trans MOSFET P-CH 30V 16.1A 3-Pin(2+Tab) DPAK T/R
    2480 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8541.29.00.95
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Channel Mode Enhancement
    Channel Type P
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 30
    Maximum Gate Source Voltage (V) ±20
    Maximum Gate Threshold Voltage (V) 3
    Maximum Continuous Drain Current (A) 16.1
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 0.5
    Maximum Drain Source Resistance (mOhm) 25@10V
    Typical Gate Charge @ Vgs (nC) 31.6@10V
    Typical Gate Charge @ 10V (nC) 31.6
    Typical Input Capacitance @ Vds (pF) 1678@15V
    Maximum Power Dissipation (mW) 10000
    Typical Fall Time (ns) 23
    Typical Rise Time (ns) 4.9
    Typical Turn-Off Delay Time (ns) 44
    Typical Turn-On Delay Time (ns) 3.5
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Original Package DPAK
    Pin Count 3
    Standard Package Method TO-252
    Terminal Form Surface Mount
    Package Height 2.29
    Package Length 6.58
    Package Width 6.1
    PCB changed 2
