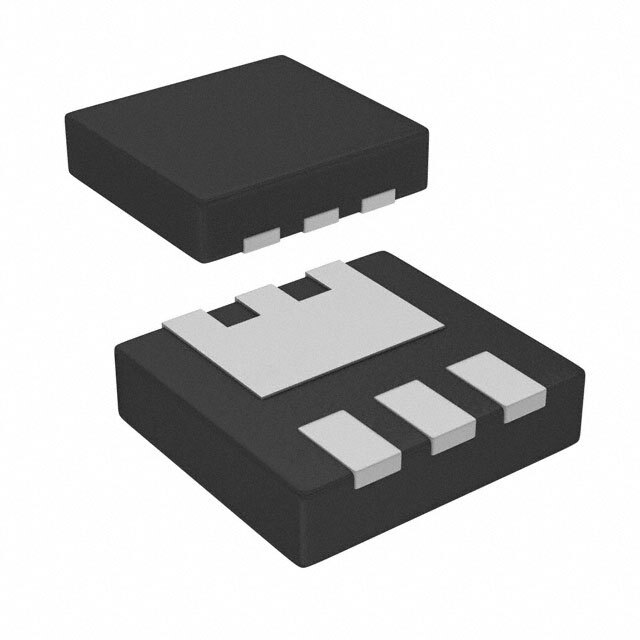

DMP3017SFK-7

SKU: 124662

Manufacturer: Diodes Incorporated

Trans MOSFET P-CH 30V 10.4A 6-Pin UDFN EP T/R

3540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Triple Drain Dual Source
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±25
Maximum Gate Threshold Voltage (V)	2.5
Maximum Continuous Drain Current (A)	10.4
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	14@10V
Typical Gate Charge @ Vgs (nC)	42.7@10V
Typical Gate Charge @ 10V (nC)	42.7
Typical Input Capacitance @ Vds (pF)	2207@15V
Maximum Power Dissipation (mW)	2200
Typical Fall Time (ns)	37.5
Typical Rise Time (ns)	16.4
Typical Turn-Off Delay Time (ns)	67.2
Typical Turn-On Delay Time (ns)	7.35
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	UDFN EP
Pin Count	6
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.58
Package Length	2.5
Package Width	2.3
PCB changed	6
