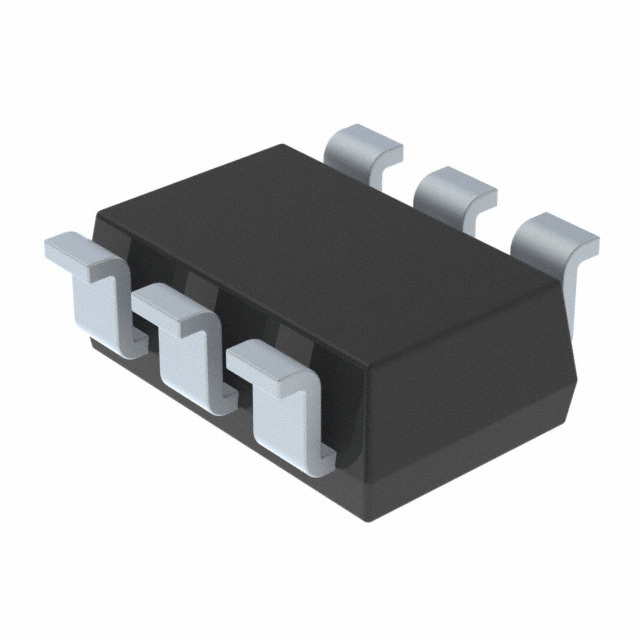

DMP2240UDM-7

SKU: 68148

Manufacturer: Diodes Incorporated

Trans MOSFET P-CH 20V 2A 6-Pin SOT-26 T/R

84140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Dual
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±12
Maximum Continuous Drain Current (A)	2
Maximum Drain Source Resistance (mOhm)	150@4.5V
Typical Input Capacitance @ Vds (pF)	320@16V
Maximum Power Dissipation (mW)	600
Typical Fall Time (ns)	27.54
Typical Rise Time (ns)	12.09
Typical Turn-Off Delay Time (ns)	55.34
Typical Turn-On Delay Time (ns)	11.51
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-26
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.1
Package Length	3
Package Width	1.6
PCB changed	6
