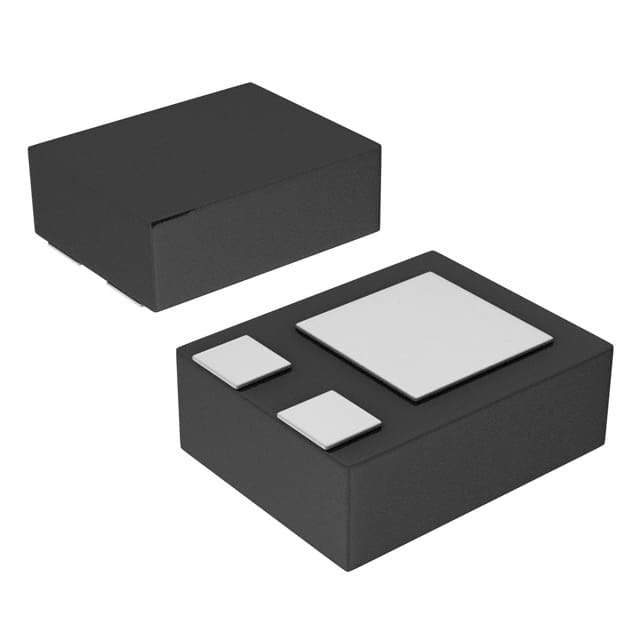

    DMP21D5UFB4-7B

    SKU: 54124
    Manufacturer: Diodes Incorporated
    Trans MOSFET P-CH 20V 0.7A 3-Pin DFN T/R
    117230 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.21.00.95
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Channel Mode Enhancement
    Channel Type P
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 20
    Maximum Gate Source Voltage (V) ±8
    Maximum Gate Threshold Voltage (V) 1
    Maximum Continuous Drain Current (A) 0.7
    Maximum Gate Source Leakage Current (nA) 5000
    Maximum IDSS (uA) 0.1
    Maximum Drain Source Resistance (mOhm) 970@5V
    Typical Gate Charge @ Vgs (nC) 0.5@4.5V
    Typical Input Capacitance @ Vds (pF) 46.1@10V
    Maximum Power Dissipation (mW) 950
    Typical Fall Time (ns) 19.2
    Typical Rise Time (ns) 4.3
    Typical Turn-Off Delay Time (ns) 20.2
    Typical Turn-On Delay Time (ns) 8.5
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Original Package DFN
    Pin Count 3
    Standard Package Method DFN
    Terminal Form Surface Mount
    Package Height 0.47
    Package Length 1
    Package Width 0.6
    PCB changed 3
