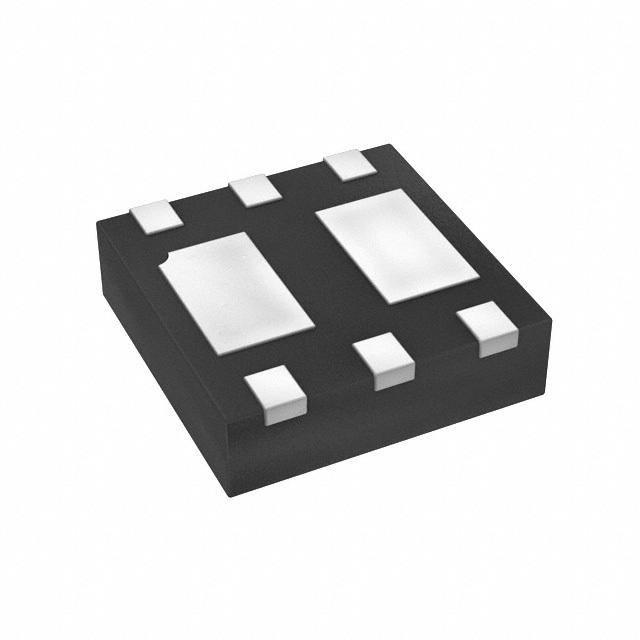

DMP2160UFDB-7

SKU: 117596

Manufacturer: Diodes Incorporated

Trans MOSFET P-CH 20V 3.8A 6-Pin DFN T/R

2080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±12
Maximum Continuous Drain Current (A)	3.8
Maximum Drain Source Resistance (mOhm)	70@4.5V
Typical Gate Charge @ Vgs (nC)	6.5@4.5V
Typical Input Capacitance @ Vds (pF)	536@10V
Maximum Power Dissipation (mW)	1400
Typical Fall Time (ns)	27.54
Typical Rise Time (ns)	12.09
Typical Turn-Off Delay Time (ns)	55.34
Typical Turn-On Delay Time (ns)	11.51
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	DFN
Pin Count	6
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.75
Package Length	2
Package Width	2
