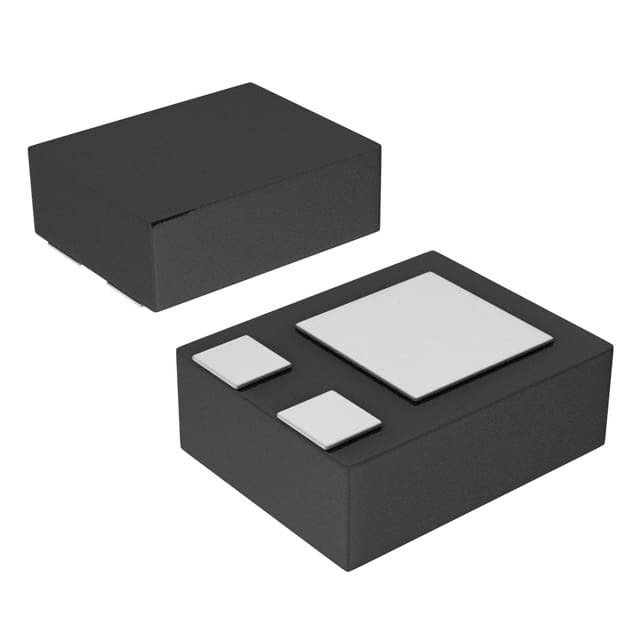

DMP210DUFB4-7

SKU: 145932

Manufacturer: Diodes Incorporated

Trans MOSFET P-CH 20V 0.2A 3-Pin X2-DFN T/R

133380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±10
Maximum Gate Threshold Voltage (V)	1
Maximum Continuous Drain Current (A)	0.2
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	0.1
Maximum Drain Source Resistance (mOhm)	5000@4.5V
Typical Input Capacitance @ Vds (pF)	13.72@15V
Maximum Power Dissipation (mW)	350
Typical Fall Time (ns)	31.5
Typical Rise Time (ns)	19.3
Typical Turn-Off Delay Time (ns)	25.9
Typical Turn-On Delay Time (ns)	7.7
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	X2-DFN
Pin Count	3
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.35(Max)
Package Length	0.6
Package Width	1
PCB changed	3
