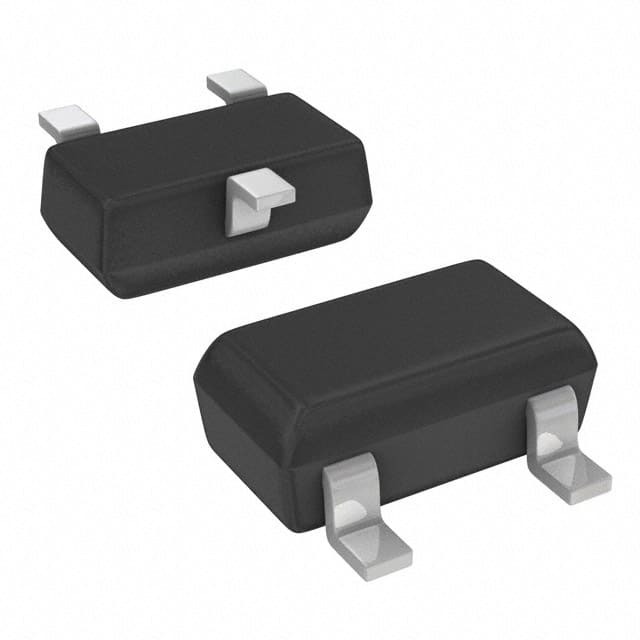

DMP2066LSN-7

SKU: 89217

Manufacturer: Diodes Incorporated

Trans MOSFET P-CH 20V 4.6A 3-Pin SC-59 T/R

21640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±12
Maximum Continuous Drain Current (A)	4.6
Maximum Drain Source Resistance (mOhm)	40@4.5V
Typical Gate Charge @ Vgs (nC)	10.1@4.5V
Typical Input Capacitance @ Vds (pF)	820@15V
Maximum Power Dissipation (mW)	1250
Typical Fall Time (ns)	23.4
Typical Rise Time (ns)	9.9
Typical Turn-Off Delay Time (ns)	28
Typical Turn-On Delay Time (ns)	4.4
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	3
Standard Package Method	SC
Original Package	SC-59
Terminal Form	Surface Mount
Package Height	1.3(Max)
Package Length	3.1(Max)
Package Width	1.7(Max)
PCB changed	3
