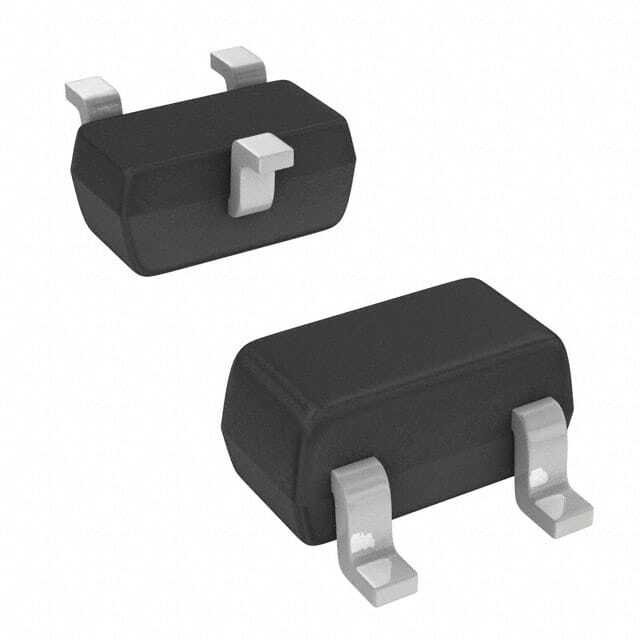

DMP2004TK-7

SKU: 153091

Manufacturer: Diodes Incorporated

Trans MOSFET P-CH 20V 0.43A 3-Pin SOT-523 T/R

1820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±8
Maximum Continuous Drain Current (A)	0.43
Maximum Drain Source Resistance (mOhm)	1100@4.5V
Typical Gate Charge @ Vgs (nC)	0.97@8V
Typical Input Capacitance @ Vds (pF)	47@16V
Maximum Power Dissipation (mW)	320
Typical Fall Time (ns)	19.3
Typical Rise Time (ns)	3.3
Typical Turn-Off Delay Time (ns)	25.5
Typical Turn-On Delay Time (ns)	5.9
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-523
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.75
Package Length	1.6
Package Width	0.8
PCB changed	3
