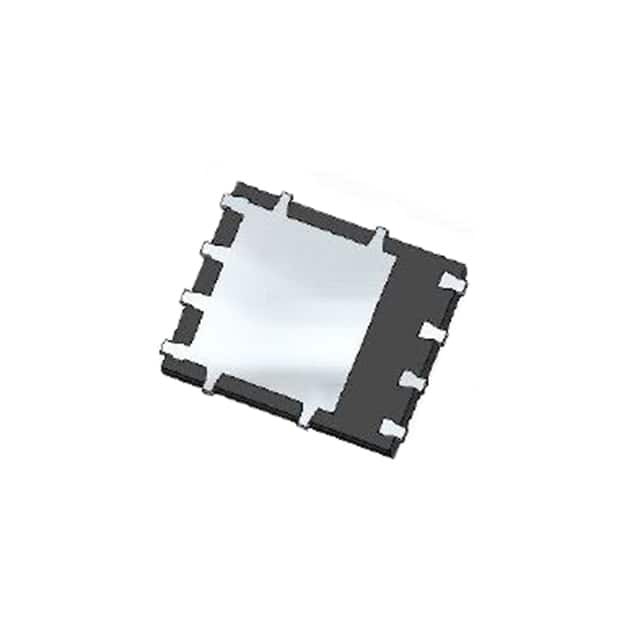

DMP2003UPS-13

SKU: 61134

Manufacturer: Diodes Incorporated

Trans MOSFET P-CH 20V 150A 8-Pin PowerDI EP T/R

1620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±12
Maximum Continuous Drain Current (A)	150
Maximum Drain Source Resistance (mOhm)	2.2@10V
Typical Gate Charge @ Vgs (nC)	79@4.5V
Typical Gate Charge @ 10V (nC)	177
Typical Input Capacitance @ Vds (pF)	8352@10V
Maximum Power Dissipation (mW)	80000
Typical Fall Time (ns)	189
Typical Rise Time (ns)	4.9
Typical Turn-Off Delay Time (ns)	377
Typical Turn-On Delay Time (ns)	7.8
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerDI EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	4.9
Package Width	5.8
PCB changed	8
