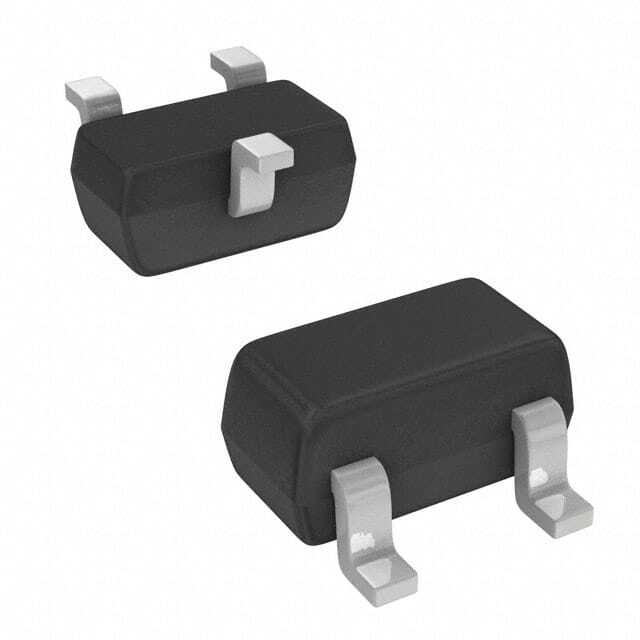

DMN601TK-7

SKU: 75117

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 60V 0.3A 3-Pin SOT-523 T/R

47080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	0.3
Maximum Drain Source Resistance (mOhm)	2000@10V
Typical Input Capacitance @ Vds (pF)	50(Max)@25V
Maximum Power Dissipation (mW)	150
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-523
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.75
Package Length	1.6
Package Width	0.8
PCB changed	3
