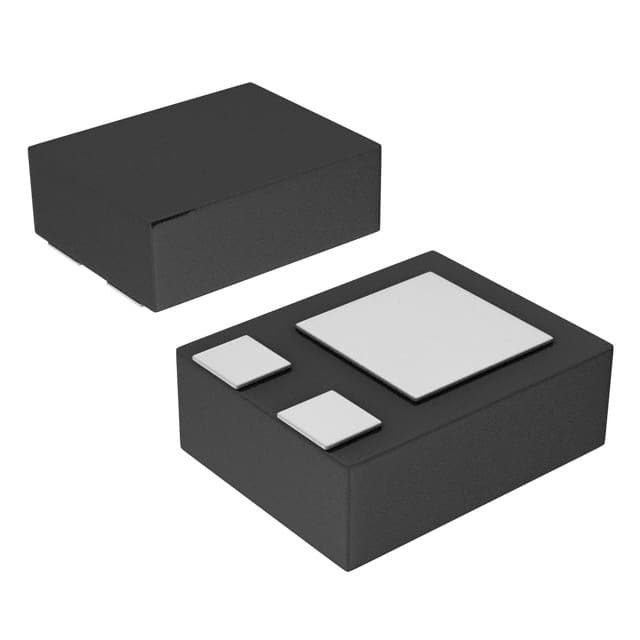

DMN3731UFB4-7B

SKU: 129326

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 30V 1.2A 3-Pin X2-DFN T/R

1130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±8
Maximum Continuous Drain Current (A)	1.2
Maximum Drain Source Resistance (mOhm)	460@4.5V
Typical Gate Charge @ Vgs (nC)	5.5@4.5V
Typical Input Capacitance @ Vds (pF)	73@25V
Maximum Power Dissipation (mW)	970
Typical Fall Time (ns)	123
Typical Rise Time (ns)	3.1
Typical Turn-Off Delay Time (ns)	477
Typical Turn-On Delay Time (ns)	2.5
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	X2-DFN
Pin Count	3
Terminal Form	Surface Mount
Package Height	0.35(Max)
Package Length	0.6
Package Width	1
