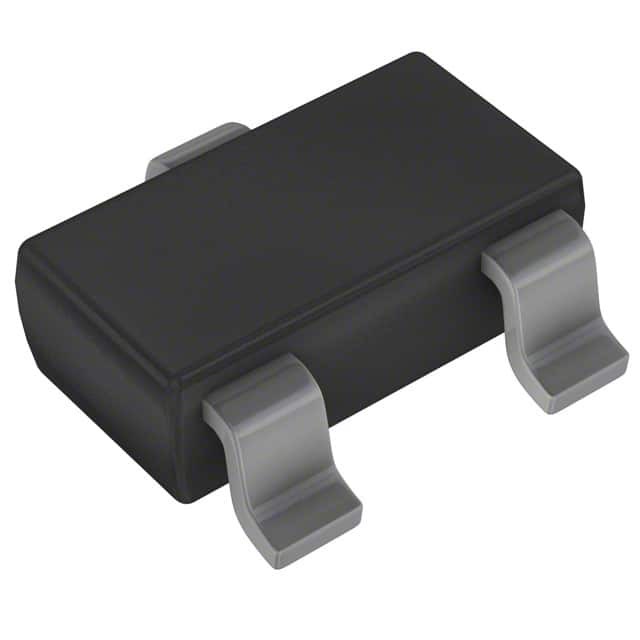

DMN3200U-7

SKU: 124647

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 30V 2.2A 3-Pin SOT-23 T/R

9890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±8
Maximum Continuous Drain Current (A)	2.2
Maximum Drain Source Resistance (mOhm)	90@4.5V
Typical Input Capacitance @ Vds (pF)	290@10V
Maximum Power Dissipation (mW)	650
Typical Fall Time (ns)	104
Typical Rise Time (ns)	43.1
Typical Turn-Off Delay Time (ns)	471
Typical Turn-On Delay Time (ns)	40.2
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	3
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	0.98
Package Length	2.9
Package Width	1.3
PCB changed	3
