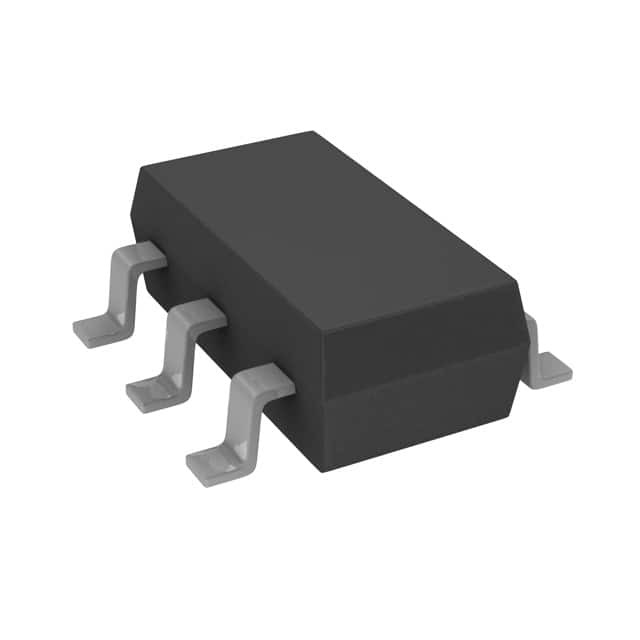

DMN3135LVT-7

SKU: 11426

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 30V 3.5A 6-Pin TSOT-26 T/R

24460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2.2
Maximum Continuous Drain Current (A)	3.5
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	60@10V
Typical Gate Charge @ Vgs (nC)	4.1@4.5V
Typical Gate Charge @ 10V (nC)	9
Typical Input Capacitance @ Vds (pF)	305@15V
Maximum Power Dissipation (mW)	1270
Typical Fall Time (ns)	2.5
Typical Rise Time (ns)	4.6
Typical Turn-Off Delay Time (ns)	13.1
Typical Turn-On Delay Time (ns)	2.6
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	TSOT-26
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.6
PCB changed	6
