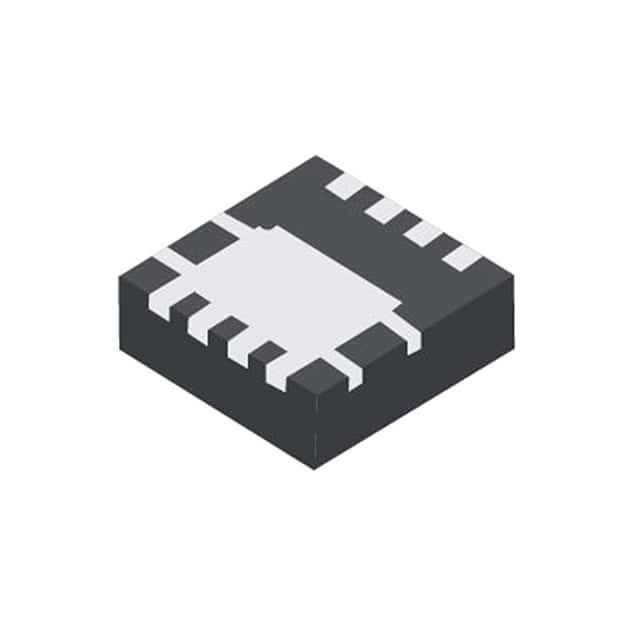

DMN3008SFGQ-7

SKU: 100923

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 30V 17.6A Automotive 8-Pin PowerDI EP T/R

3050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	Yes
PPAP	Yes
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	17.6
Maximum Drain Source Resistance (mOhm)	4.4@10V
Typical Gate Charge @ Vgs (nC)	41@4.5V
Typical Gate Charge @ 10V (nC)	86
Typical Input Capacitance @ Vds (pF)	3690@10V
Maximum Power Dissipation (mW)	2100
Typical Fall Time (ns)	28.4
Typical Rise Time (ns)	14
Typical Turn-Off Delay Time (ns)	63.7
Typical Turn-On Delay Time (ns)	5.7
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	PowerDI EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.78
Package Length	3.3
Package Width	3.3
PCB changed	8
