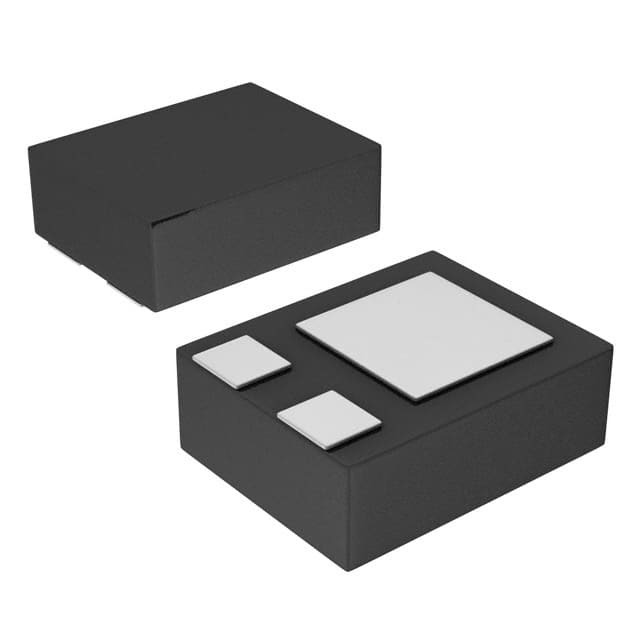

    DMN2500UFB4-7

    SKU: 54110
    Manufacturer: Diodes Incorporated
    Trans MOSFET N-CH 20V 1A 3-Pin DFN T/R
    71040 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 20
    Maximum Gate Source Voltage (V) ±6
    Maximum Gate Threshold Voltage (V) 1
    Maximum Continuous Drain Current (A) 1
    Maximum Gate Source Leakage Current (nA) 1000
    Maximum IDSS (uA) 0.1
    Maximum Drain Source Resistance (mOhm) 400@4.5V
    Typical Gate Charge @ Vgs (nC) 736.6@4.5V
    Typical Input Capacitance @ Vds (pF) 60.67@16V
    Maximum Power Dissipation (mW) 950
    Typical Fall Time (ns) 12.3
    Typical Rise Time (ns) 7.4
    Typical Turn-Off Delay Time (ns) 26.7
    Typical Turn-On Delay Time (ns) 5.1
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Original Package DFN
    Pin Count 3
    Standard Package Method DFN
    Terminal Form Surface Mount
    Package Height 0.47
    Package Length 1
    Package Width 0.6
    PCB changed 3
