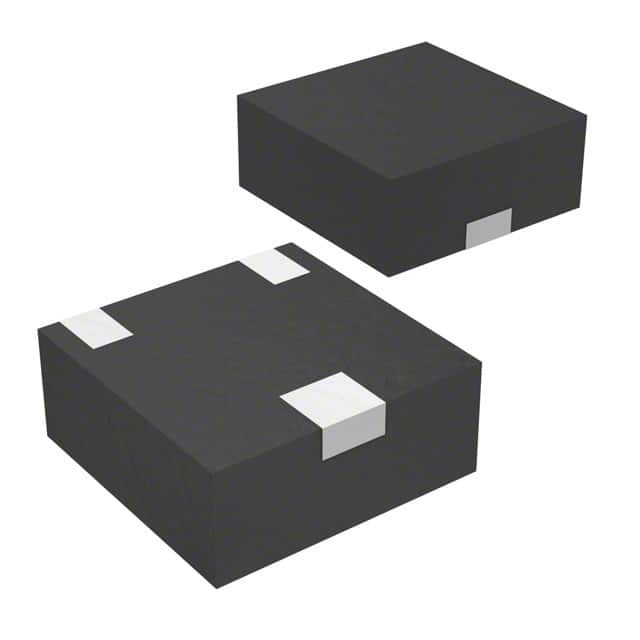

    DMN2400UFD-7

    SKU: 110491
    Manufacturer: Diodes Incorporated
    Trans MOSFET N-CH 20V 0.9A 3-Pin X1-DFN T/R
    19500 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status NRND
    HTS 8541.29.00.95
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 20
    Maximum Gate Source Voltage (V) ±12
    Maximum Gate Threshold Voltage (V) 1
    Maximum Continuous Drain Current (A) 0.9
    Maximum Gate Source Leakage Current (nA) 1000
    Maximum IDSS (uA) 0.1
    Maximum Drain Source Resistance (mOhm) 600@4.5V
    Typical Gate Charge @ Vgs (nC) 0.5@4.5V
    Typical Input Capacitance @ Vds (pF) 37@16V
    Maximum Power Dissipation (mW) 800
    Typical Fall Time (ns) 10.54
    Typical Rise Time (ns) 7.28
    Typical Turn-Off Delay Time (ns) 13.74
    Typical Turn-On Delay Time (ns) 4.06
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Original Package X1-DFN
    Pin Count 3
    Standard Package Method DFN
    Terminal Form Surface Mount
    Package Height 0.48
    Package Length 1.2
    Package Width 1.2
    PCB changed 3
