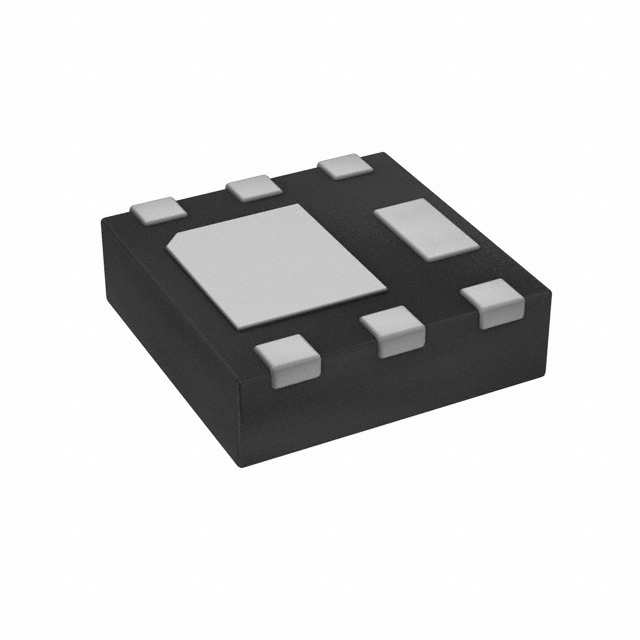

DMN2025UFDF-7

SKU: 68130

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 20V 6.5A 6-Pin UDFN EP T/R

1640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±10
Maximum Gate Threshold Voltage (V)	1
Maximum Continuous Drain Current (A)	6.5
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	25@4.5V
Typical Gate Charge @ Vgs (nC)	5.9@4.5V
Typical Gate Charge @ 10V (nC)	12.3
Typical Input Capacitance @ Vds (pF)	486@10V
Maximum Power Dissipation (mW)	1600
Typical Fall Time (ns)	9.3
Typical Rise Time (ns)	5.4
Typical Turn-Off Delay Time (ns)	17.6
Typical Turn-On Delay Time (ns)	3.4
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	UDFN EP
Pin Count	6
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.57
Package Length	2
Package Width	2
PCB changed	6
