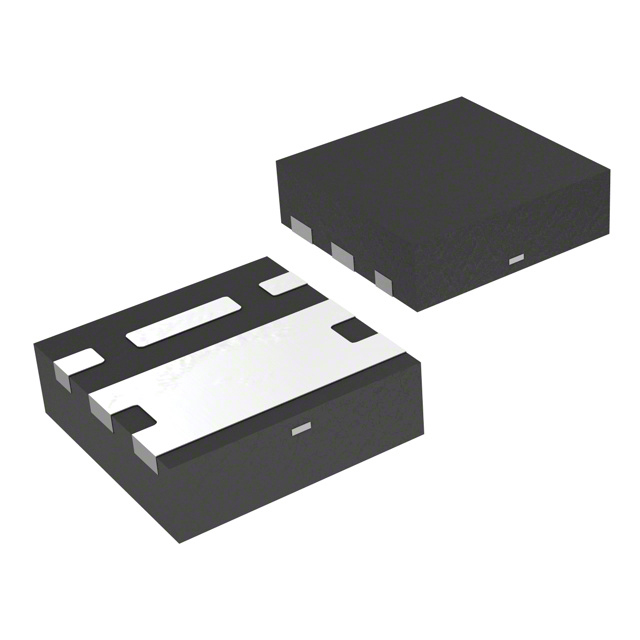

    DMN2011UFDE-7

    SKU: 82168
    Manufacturer: Diodes Incorporated
    Trans MOSFET N-CH 20V 11.7A 6-Pin UDFN EP T/R
    200 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.29.00.95
    Automotive No
    PPAP No
    Configuration Single Quad Drain
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 20
    Maximum Gate Source Voltage (V) ±12
    Maximum Gate Threshold Voltage (V) 1
    Maximum Continuous Drain Current (A) 11.7
    Maximum Gate Source Leakage Current (nA) 10000
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 9.5@4.5V
    Typical Gate Charge @ Vgs (nC) 24@4.5V
    Typical Gate Charge @ 10V (nC) 56
    Typical Input Capacitance @ Vds (pF) 2248@10V
    Maximum Power Dissipation (mW) 1970
    Typical Fall Time (ns) 13.5
    Typical Rise Time (ns) 2.6
    Typical Turn-Off Delay Time (ns) 21.6
    Typical Turn-On Delay Time (ns) 3.6
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Original Package UDFN EP
    Pin Count 6
    Standard Package Method DFN
    Terminal Form Surface Mount
    Package Height 0.57
    Package Length 2
    Package Width 2
    PCB changed 6
